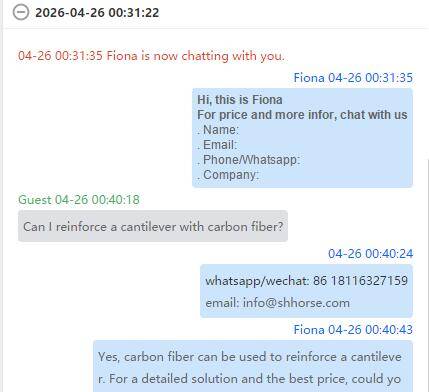

We recently received a requiry from Spain.

The customer asked us : Can I reinforce a cantilever with carbon fiber?

Today we will talk about this issue.

The direct answer is absolutely yes.

Yes, it is safe, approved, cost-effective, and long-lasting. Whether your cantilever has cracks, bending deformation, insufficient load capacity, or aging structural damage, CFRP reinforcement provides a reliable permanent solution without demolition, noise, or long construction downtime.

Why Cantilever Structures Need Professional Reinforcement in the First Place?

Cantilevers are high-risk structural elements. Unlike simply supported beams, a cantilever carries all bending stress, shear force, and tension load at its fixed connection point. Common problems that require urgent reinforcement include:

- Excessive deflection or downward bending due to increased live load, aging materials, or original design undercapacity

- Cracks appearing on the top surface of concrete cantilevers — a clear sign of tensile stress failure

- Steel cantilever beam corrosion and section loss weakening the overall load-bearing capacity

- Structural aging, weathering, or long-term fatigue from daily building use

- Code upgrades that require higher safety standards for balconies, industrial platform cantilevers, and exterior canopy structures

If these issues are left untreated, cantilevers can suffer sudden structural failure. Carbon fiber reinforcement solves these problems without heavy construction work or major demolition.

Why Carbon Fiber Is A Good Choice for Cantilever Reinforcement?

When engineers evaluate how to strengthen a cantilever, carbon fiber always ranks as the top material choice for these practical advantages:1. Ultra-high tensile strength without adding weight

Cantilevers cannot tolerate extra dead load. Steel plates and additional concrete add significant weight, worsening the bending moment at the fixed end. Carbon fiber sheets and carbon fiber plates have a tensile strength 5–10 times higher than steel while being extremely lightweight. It strengthens the cantilever without increasing structural pressure on the supporting column or wall.

2. Excellent resistance to corrosion and weathering

Many cantilevers are exposed outdoors: Balconies, exterior walkways, factory overhangs, and parking shelter beams. Steel reinforcement rusts over time, leading to repeated maintenance costs. Carbon fiber is completely corrosion-resistant, waterproof, and unaffected by humidity, temperature changes, or coastal salt environments. Once installed, it protects the cantilever for more than 30 years with zero upkeep.

3. Easy installation on narrow, hard-to-reach cantilever spaces

Cantilever sections are often narrow, protruding, and difficult to access with heavy machinery. Carbon fiber materials are flexible, thin, and easy to cut on-site. The entire reinforcement process only requires surface cleaning, primer coating, epoxy bonding, and carbon fiber lamination. No large construction equipment, no complex formwork, and no long project delays.

4. Low cost compared with full structural replacement

Rebuilding a faulty cantilever or replacing steel beams is extremely expensive and time-consuming, and it often requires temporary building shutdowns. Carbon fiber reinforcement costs only a fraction of total reconstruction expenses, shortens construction time by 70%, and allows the building to remain in normal use during the whole repair process.

Where Carbon Fiber Cantilever Reinforcement Is Most Commonly Used?

- Residential building balcony cantilever reinforcement

- Commercial building exterior canopy and facade overhang beams

- Industrial factory heavy-load platform cantilever strengthening

- Bridge side cantilever wing repair and upgrade

- Parking lot overhead cantilever beam anti-crack reinforcement

- Steel cantilever beam fatigue strengthening in logistics warehouses

Important Limitations You Must Know Before Construction

While carbon fiber is excellent for cantilever reinforcement, it is not universal. You need to note these limits:

- Carbon fiber only improves tensile strength and bending resistance; it cannot fix severely crushed concrete compression zones. If the cantilever has severe concrete crumbling, partial repair is required first.

- Installation must be completed by professional structural technicians. Poor bonding will reduce reinforcement effectiveness.

- High-temperature fire environments need additional fireproof coating on the carbon fiber surface.
