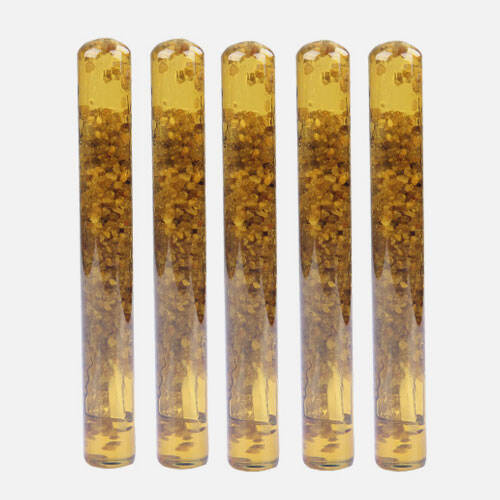

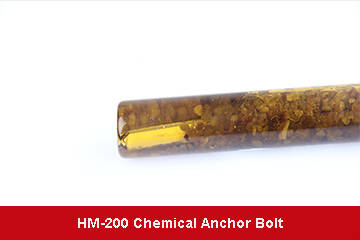

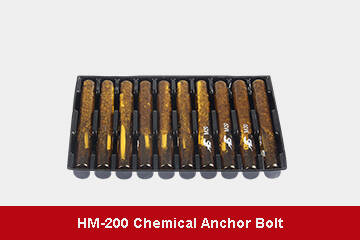

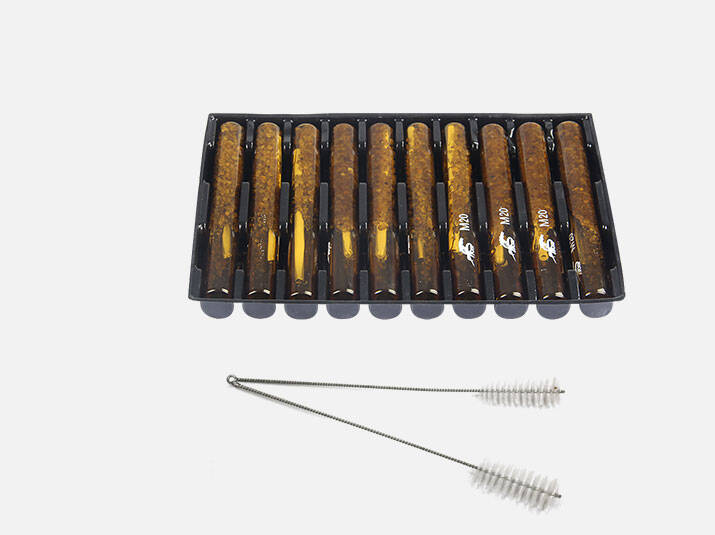

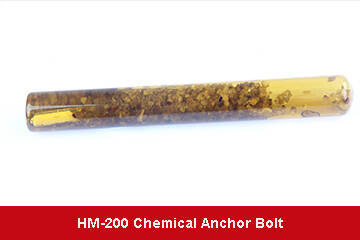

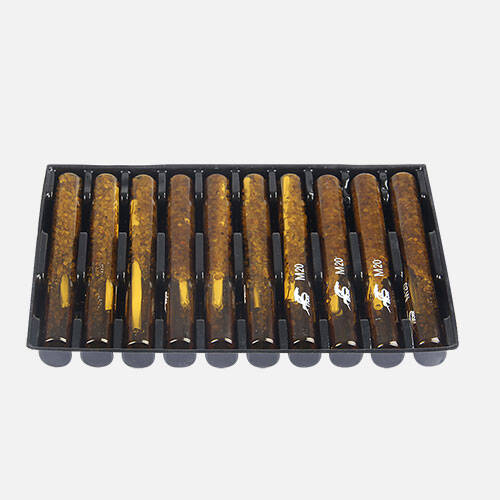

HM-200 chemical anchor bolt is high-strength anchor bolt with vinyl resin as main materials, composed of selected quartz sands, curing agents and resins placed in sealed glass tubes, together with the use of metal screws; It is a new type of anchor material which can substitute embedded parts, expansion screws.
HM-200 chemical anchor bolt is high-strength anchor bolt with vinyl resin as main materials, composed of selected quartz sands, curing agents and resins placed in sealed glass tubes, together with the use of metal screws; it is a new type of anchor material which can substitute embedded parts, expansion screws.
• Anti-fatigue, anti-aging, corrosion resistance, no creep;
• Anti-fatigue, anti-aging, corrosion resistance, no creep;
• Various types of curtain wall bracket fixation: for fixation of glasses, stones, aluminum curtain walls and all kinds of composite material curtain wall steel brackets, bases and keels;
• Various types of curtain wall bracket fixation: for fixation of glasses, stones, aluminum curtain walls and all kinds of composite material curtain wall steel brackets, bases and keels;
Product Characteristics
• Strong cohesion, high drawing force, the effect is the same as embedded;
• Wide use temperature range, can construct at -10℃ ~ 40℃;
• Used for small spacing, margins, narrow spaces;
• Applicable to various substrates, concrete, rock, aluminum material, etc.;
• Non-expansion chemical bond strength, not destroy the substrate;
• Convenient and fast construction, safe and environment-friendly use.
Product Characteristics
• Strong cohesion, high drawing force, the effect is the same as embedded;
• Wide use temperature range, can construct at -10℃ ~ 40℃;
• Used for small spacing, margins, narrow spaces;
• Applicable to various substrates, concrete, rock, aluminum material, etc.;
• Non-expansion chemical bond strength, not destroy the substrate;
• Convenient and fast construction, safe and environment-friendly use.
Application Range
• The fixation of machines and equipements;

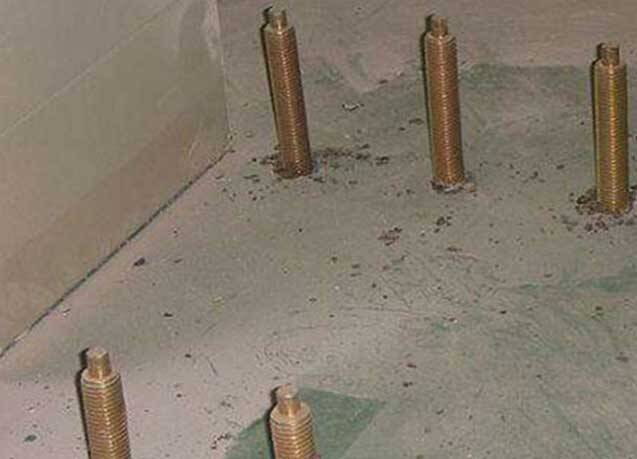

• Connection and fixation of steel structures and concrete structures;
• The fixation of chemical engineer pipes, equipment pipelines, crane rails and other building equipments.
Application Range
• The fixation of machines and equipements;
• Connection and fixation of steel structures and concrete structures;
• The fixation of chemical engineer pipes, equipment pipelines, crane rails and other building equipments.
HM-MJ50/100 Prestressed CFRP Plate System
HM-120 Steel Bonding Adhesive
HM-500 Injection Anchoring Adhesive
| Installation Data Table | |||||||||
| Anchor Specifications | Hole Diameter | Hole Depth | Bolt Length | Minimum Substrate Thickness | Maximum Fixture Thickness | Fixture Hole Diameter | Recommended Tightening Torque | Design Value of Tensile Strength | Design Value of Shear Strength |
| mm | mm | mm | mm | mm | mm | Nm | kN | kN | |
| M10 | 12 | 90 | 130 | 130 | 20 | 12 | 20 | 13.8 | 12.6 |
| M12 | 14 | 110 | 160 | 160 | 27 | 14 | 40 | 19.8 | 18.3 |
| M16 | 18 | 125 | 190 | 175 | 35 | 18 | 80 | 28.9 | 34.6 |
| M20 | 25 | 170 | 260 | 220 | 65 | 25 | 150 | 52.4 | 54.0 |
| M24 | 28 | 210 | 300 | 270 | 63 | 28 | 200 | 75.5 | 77.8 |
| M30 | 35 | 280 | 380 | 340 | 70 | 35 | 400 | 121.3 | 163.7 |
| Guring Time Schedule | |||||||
| Ambient temperature | -5℃ | 0℃ | 5℃ | 10℃ | 20℃ | 30℃ | 40℃ |
| Gel time | 30min | 20min | 14min | 9min | 5min | 4min | 2min |
| Curing time | 6hour | 3hour | 90min | 70min | 45min | 25min | 15min |
| Influence coefficient of concrete strength | ||||
| Label | C25 | C30 | C35 | C40 |
| Coefficient | 0.95 | 1.0 | 1.05 | 1.10 |
